48" Box Scraper

A box scraper I designed and built for the 716H.

Last updated 6/11/2004 · Click any photo for the full-size picture

Why build my own

Why build my own

After looking at various online implement sites and not liking what I saw for small garden tractor box scrapers, I thought I'd build one myself. The price tag at the end of the project, not including my labor, was $118 in new steel. I purchased the steel and had it bent at a local steel fabrication shop.

Welding the upper 3-point frame

Welding the upper 3-point frame

Here the upper 3-point frame is being welded in. The piece of bar stock that's clamped is just to judge spacing.

Blade bracing

Blade bracing

The blade bracing bars were added to keep the blade from bending if it catches something in the middle of the cutting edge.

Top view

Top view

Top view before the lower 3-point mounts were installed.

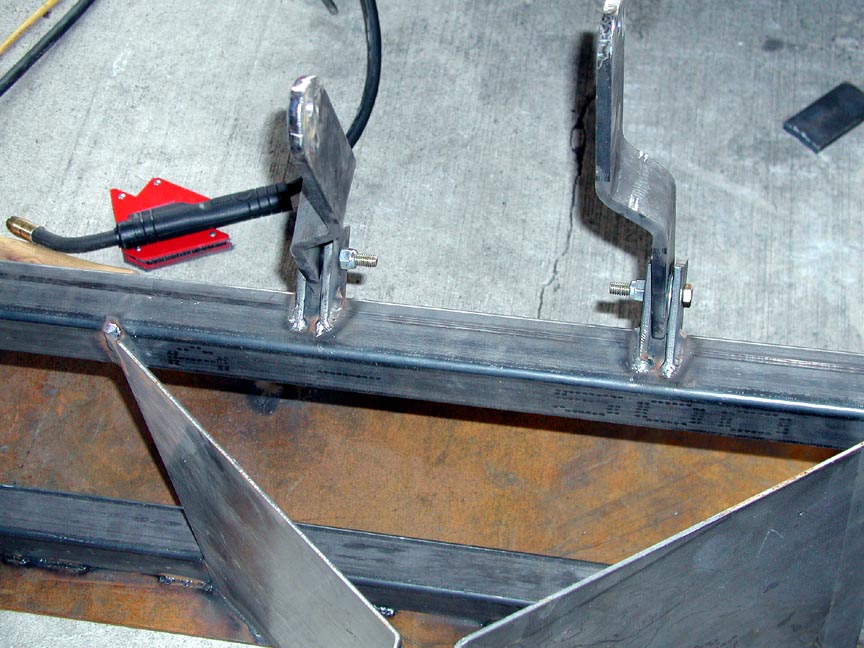

Lower 3-point mounts

Lower 3-point mounts

Adding the lower 3-point mounts/pivots here.

Another view

Another view

Another view.

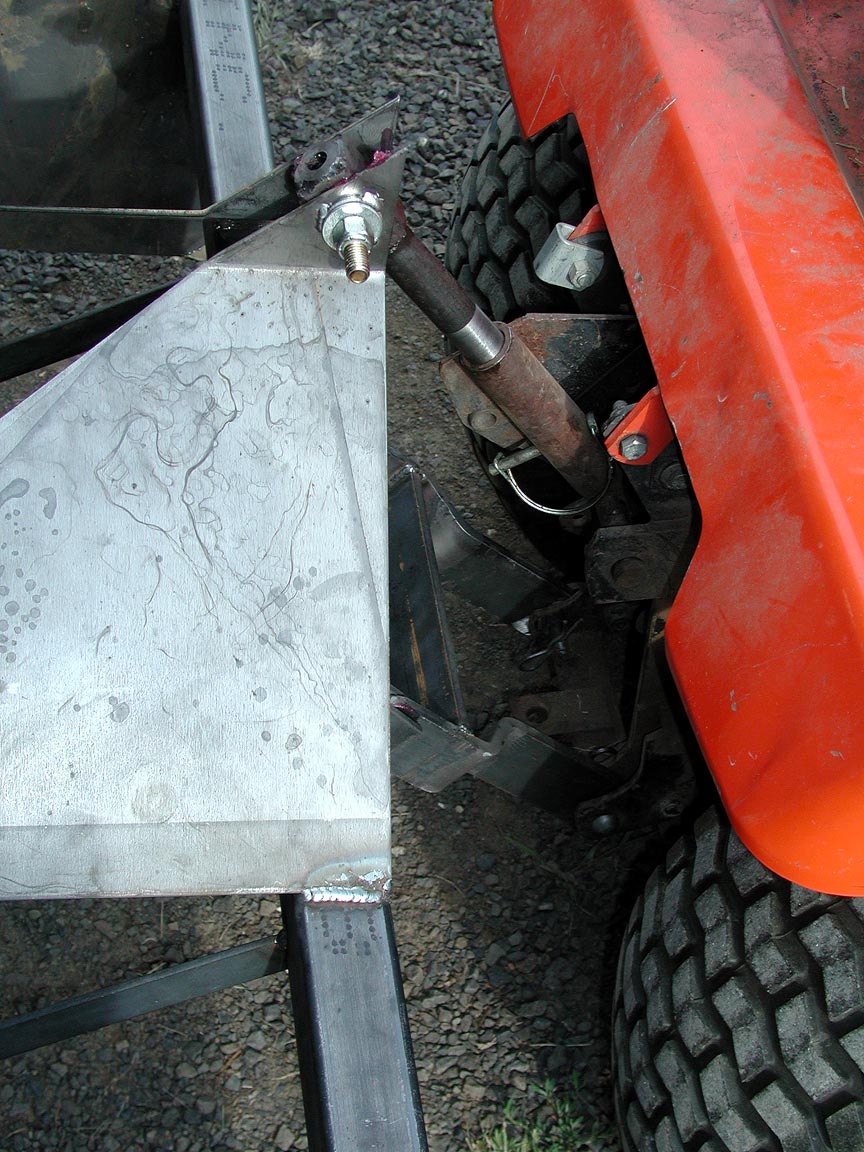

Upper lift arm

Upper lift arm

The upper lift arm was made out of round bar with a piece of square tube fitted over the end at the pivot point.

Profile view

Profile view

Profile view.

Another profile view

Another profile view

Another profile view.

Lighter than planned

Lighter than planned

The scraper ended up being lighter than I planned on which is a good thing. The electric lift doesn't have a problem lifting it at all and makes depth control easy. The only addition I'm thinking about are some sort of depth gauge shoes so it can just skim along without cutting in much.

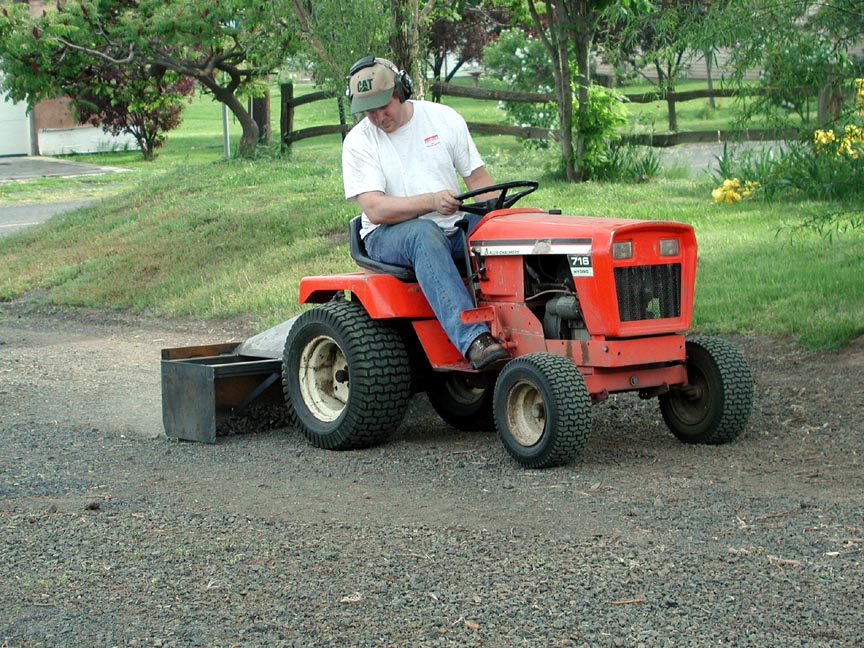

Trying it out

Trying it out

Trying it out. The gravel is rolling into the blade nicely.

Not enough gravel

Not enough gravel

Not much gravel in the driveway, unfortunately. Need to get a few dump truck loads in.
